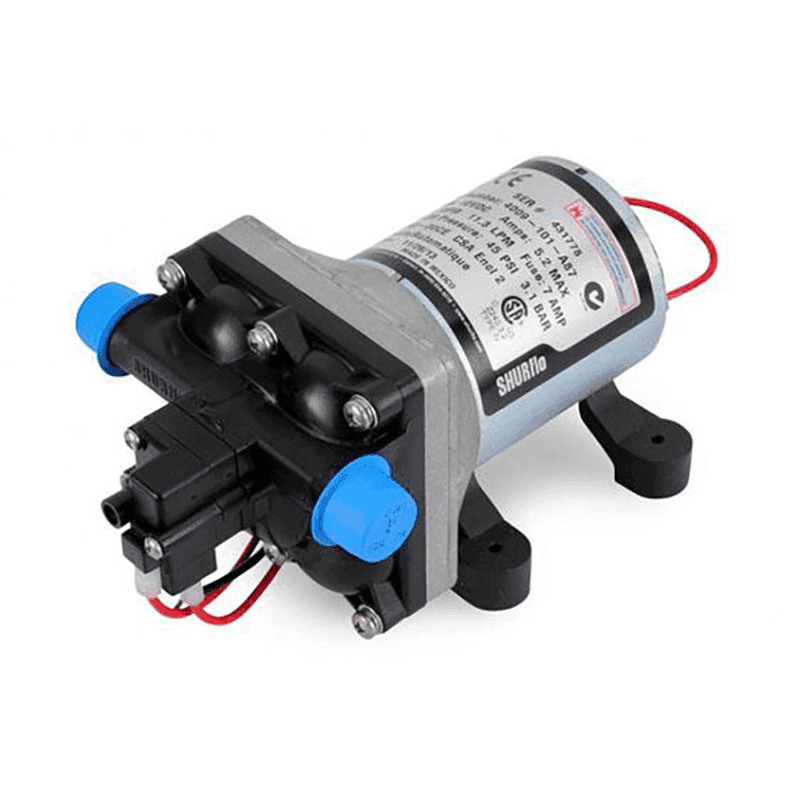

Water Pump (12V)

Product information

Made for the way an Ultimate is used.

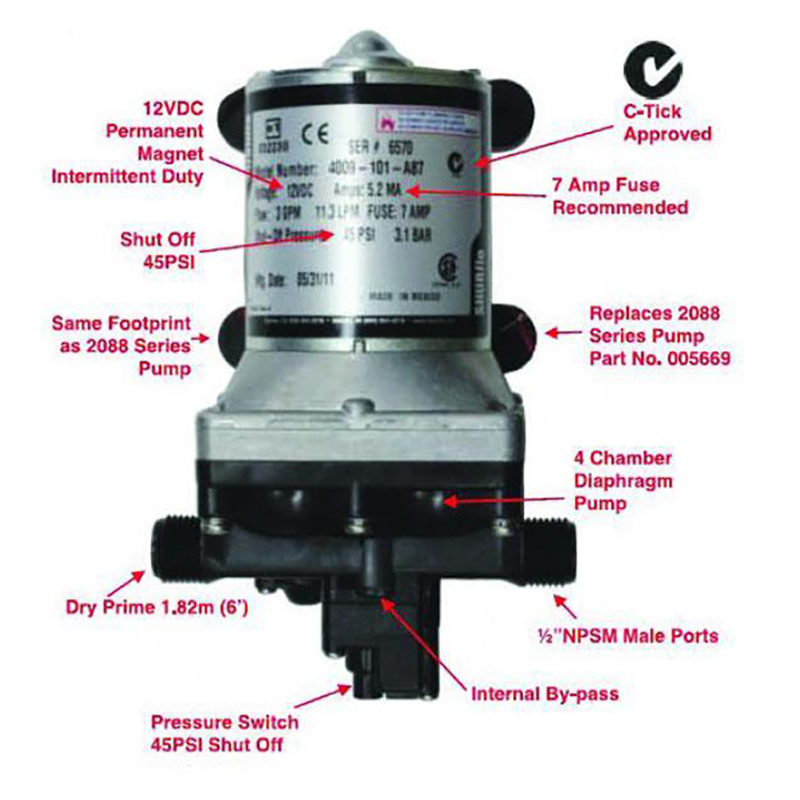

Features

• A fresh water pump designed with a one piece diaphragm and internal by-pass.

• Four independent pump chambers - quiet, smooth operation.

• Adjustable pressure shut off - fine tune to your needs.

• Self priming up to 1.8 metres (6 feet) vertical.

• O-ring check valve design - long life and consistent performance.

• Adjustable bypass - eliminates need for accumulator tank.

• CE & C-Tick compliant.

Specifications

• Made from stainless steel and zinc-plated steel.

• 12V DC Motor.

• Ports: 1/2” - 14 NPSM-Male.

• Inlet PSI: 30Psi (2.1Bar) Max.

• Shut Off Pressure: 45Psi.

• 12MM BSP fittings can be used.

• Bare wire installation.

• Dimensions: 205mm (L) x 125mm (W) x 111mm (H).
